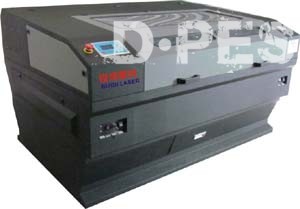

| Model |
K1390 |
|
| Engraving Area |
1300×900mm |
|
| Engraving Speed |
0-64000mm/min |
|
| Laser power |
80w |
|
| Natural life of laser |
3000hours |
|
| Laser wave length |
10.6um |
|
| Resolution ratio |
0.025mm |
|
| Minimum shaping character |
Chinese character 2mm/ letter 1mm |
|
| Resetting positioning accuracy |
±0.01mm |
|
| Power Supply |
Ac220v±10%,50HZ |
|
| Gross Power |
＜1250w |
|
| Operating Temperature |
0℃-45℃ |
|
| Operating humidity |
5%-95% |
|
| Graphic Format Supported |
BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF |
|
| Driver Type |
Stepper Motor |
|
| Cooling |
air and water cooling |
|
| Opearate System |
Win98/Win2000/WinXP |
|
| Max Cutting thickness |
≦25mm |
|
| Optional Configuration |
①Auto moving platform②Rotary device, ③Cooling machine |
|
| Net Weight |
280KG |
|
| Dimension |
1950×1650×1200mm |
|
| More information |

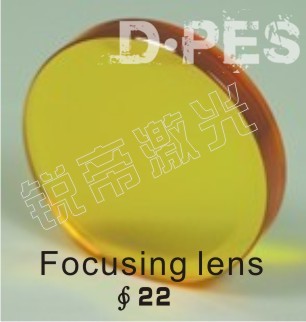

We use the Taiwan guide, heat dissipation more effective than the domestic goods. We use Singapore lenses, focusing effect better than the domestic goods. So that cutting and carving faster, more accurate. Moreover, we use the German imported belt, this belt more difficult to grind. |
|
